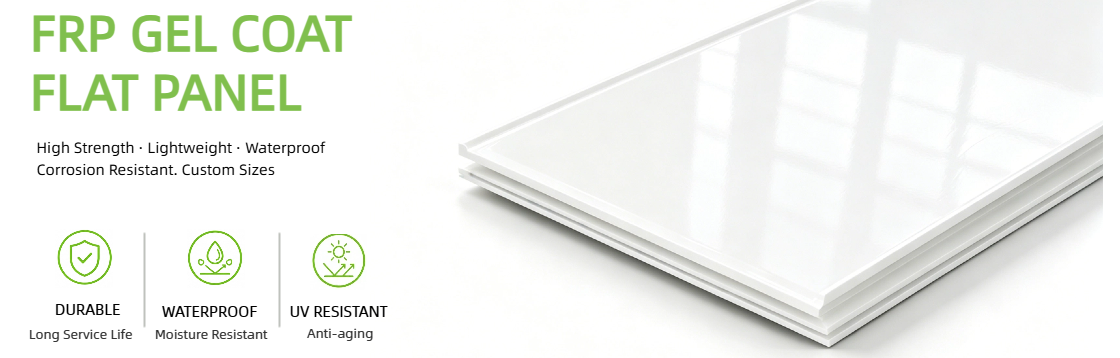

Gel Coated FRP Panel - Waterproof UV Resistant Fiberglass Reinforced Plastic Panel

Frp gel coat panel

Product Description

FRP Gelcoat Panel is a high-performance thermosetting composite plastic building material, which takes unsaturated polyester resin or epoxy resin as the matrix, combined with alkali-free glass fiber as the reinforcing material, and is covered with a dense layer of special gelcoat resin on the surface. Formed by integral curing through special processes, it is the preferred solution for corrosion resistance, weather resistance and aesthetics in industrial and civil construction fields.

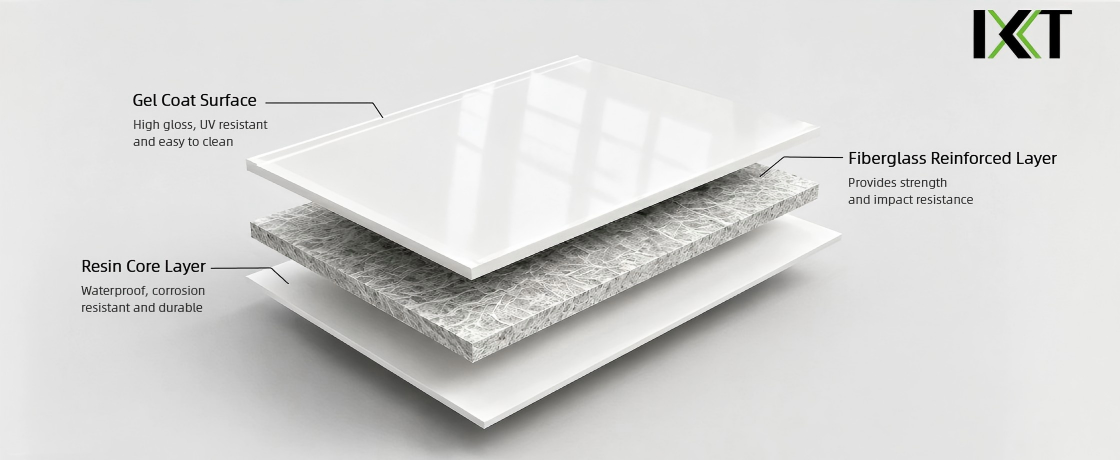

• The product features a three-layer composite structural design.

• The surface has a 0.3-0.8mm high-gloss gelcoat layer for strong protection.

• The gelcoat layer isolates corrosion, UV rays and moisture and prevents glass fiber exposure.

• The middle glass fiber reinforced layer provides excellent mechanical performance.

• Its flexural strength exceeds 180MPa, three times that of ordinary PVC panels.

• It weighs only one quarter of steel, easy for transportation and on-site installation.

• The optional bottom layer enhances fire safety to meet diverse application requirements.

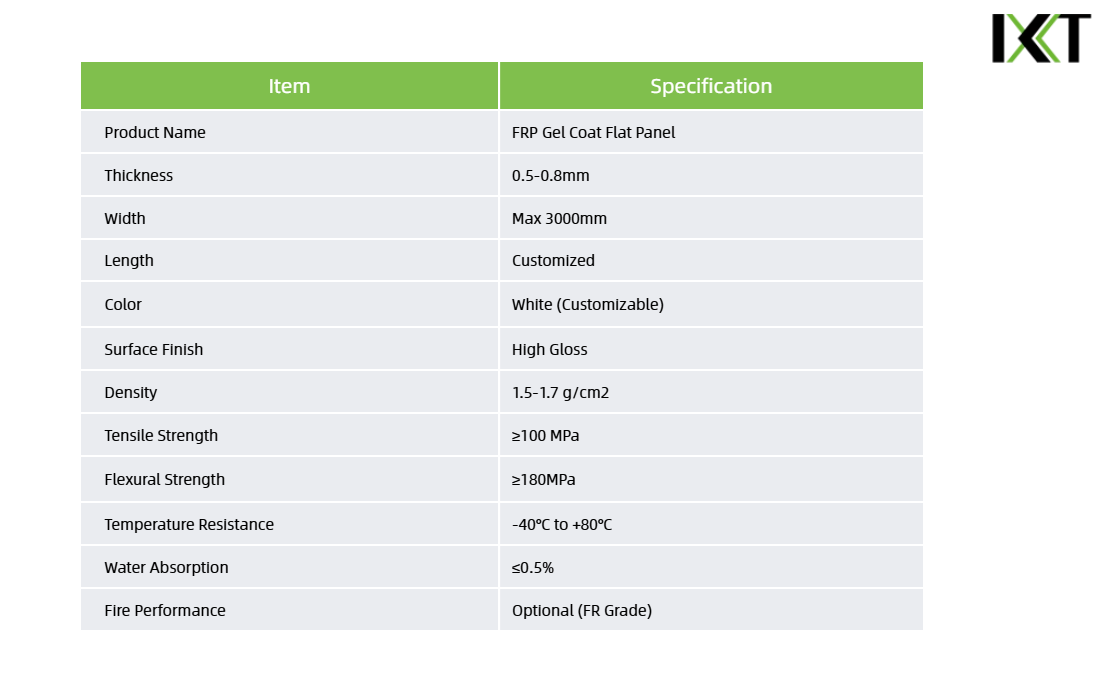

TECHNICAL DATA

Relying on nano-modification technology and high-quality raw materials, this product has comprehensive performance advantages: outstanding corrosion resistance, able to withstand strong acid and alkali environments with pH value of 1-14, and the surface corrosion rate is only 0.02mm/year in the 2000-hour salt spray test, far exceeding that of 304 stainless steel; excellent weather resistance, adaptable to extreme temperatures from -40℃ to 80℃, UV resistance rate up to 99%, passing the ISO 4892-3 standard grade 5 weather resistance test, and the color difference ΔE is less than 3 after 1000 hours of UV accelerated aging; waterproof and moisture-proof, not easy to breed mold, with a smooth surface and self-cleaning function, which greatly extends the cleaning cycle and significantly reduces maintenance costs.

PRODUCT FEATURES

• Designed for excellent impact resistance and long-term durability.

• Lightweight structure helps reduce load and improve efficiency.

• Provides reliable protection against water and moisture damage.

• Resists sunlight exposure while keeping color stable over time.

• Easy to cut, drill, bond and install for faster projects.

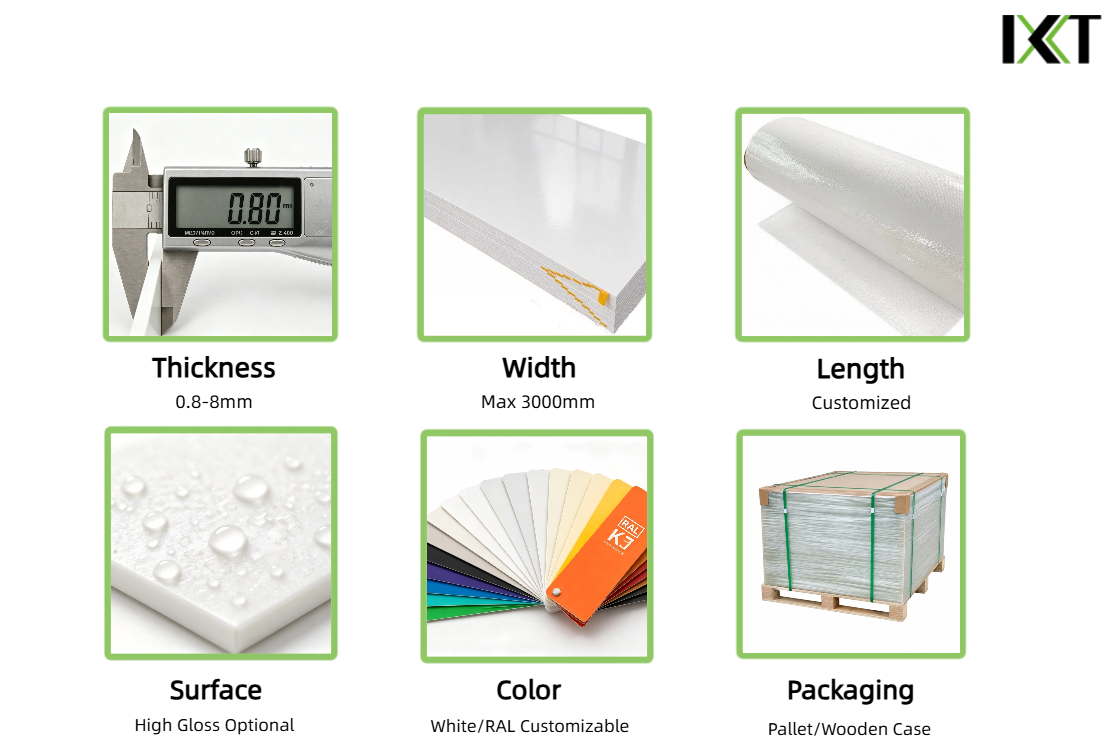

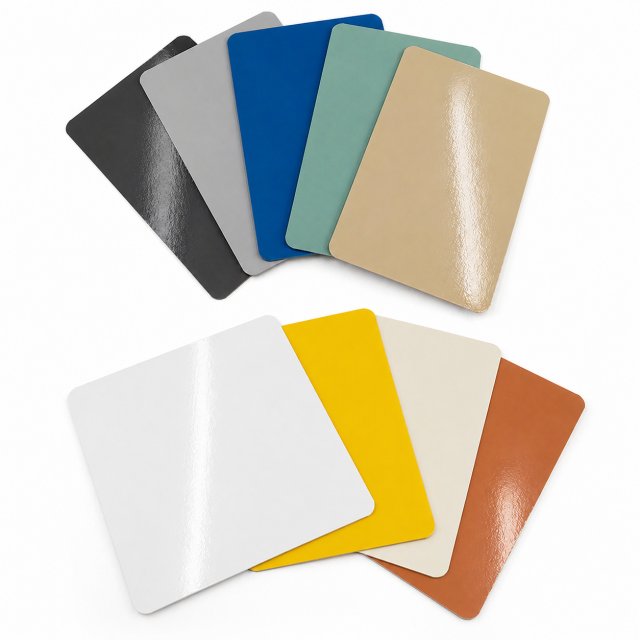

Our FRP Gelcoat Panels support customized size, color and functions. Non-standard dimensions and various colors are available on demand, and special performance such as flame retardant can be customized. Adhering to the service tenet of customer first, we tailor professional solutions to match all application scenarios.

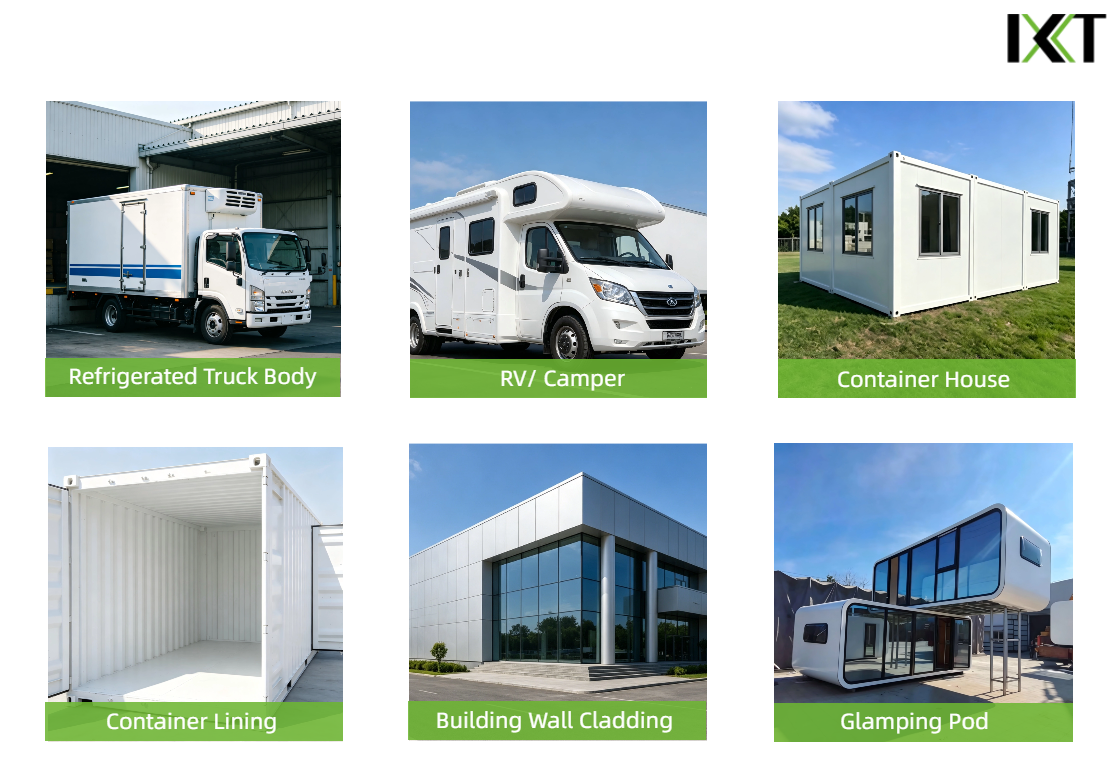

APPLICATIONS

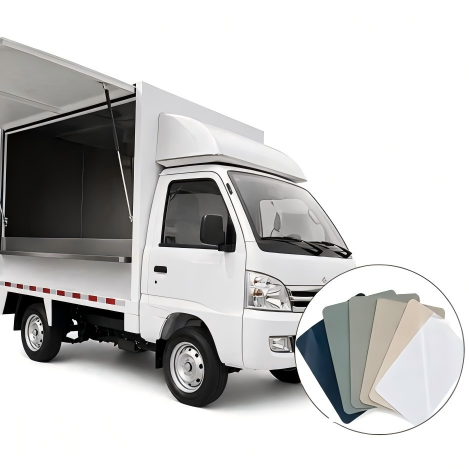

• Refrigerated Truck Bodies:Ideal for cold chain logistics, providing excellent thermal insulation and impact resistance to keep goods at optimal temperatures during transit.

• RVs & Campers:The lightweight yet robust material helps reduce vehicle weight while ensuring a comfortable, weatherproof living space for road trips and outdoor adventures.

• Container Houses & Lining:Perfect for modular construction, offering a smooth, durable interior lining and exterior cladding that protects against moisture, corrosion, and extreme weather.

• Building Wall Cladding:Delivers a sleek, modern finish for commercial and residential buildings, combining aesthetic appeal with long-lasting protection against the elements.

• Glamping Pods:Creates stylish, weather-resistant structures for luxury outdoor accommodations, balancing comfort, durability, and visual appeal.
